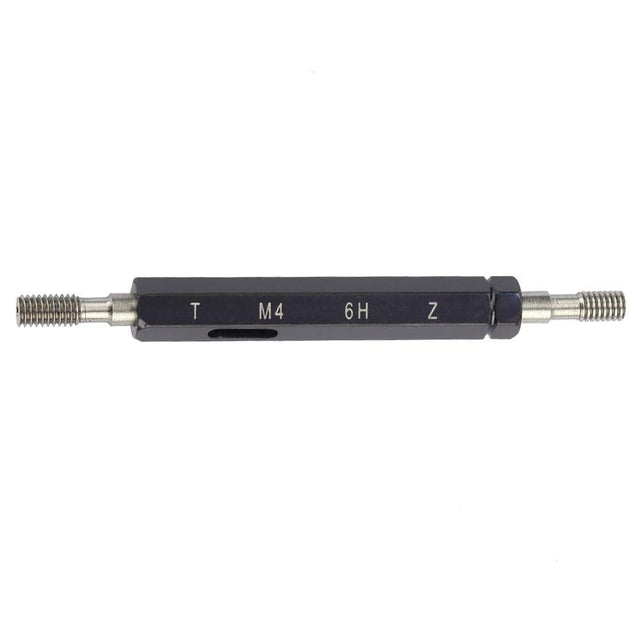

Thread inspection methods should be selected according to the type of information required rather than treated as interchangeable solutions. Traditional GO/NO-GO plug and ring gauges remain highly effective for rapid functional verification because they provide a simple and reliable pass/fail assessment. However, they do not indicate the actual dimensional position of a thread within its tolerance band.

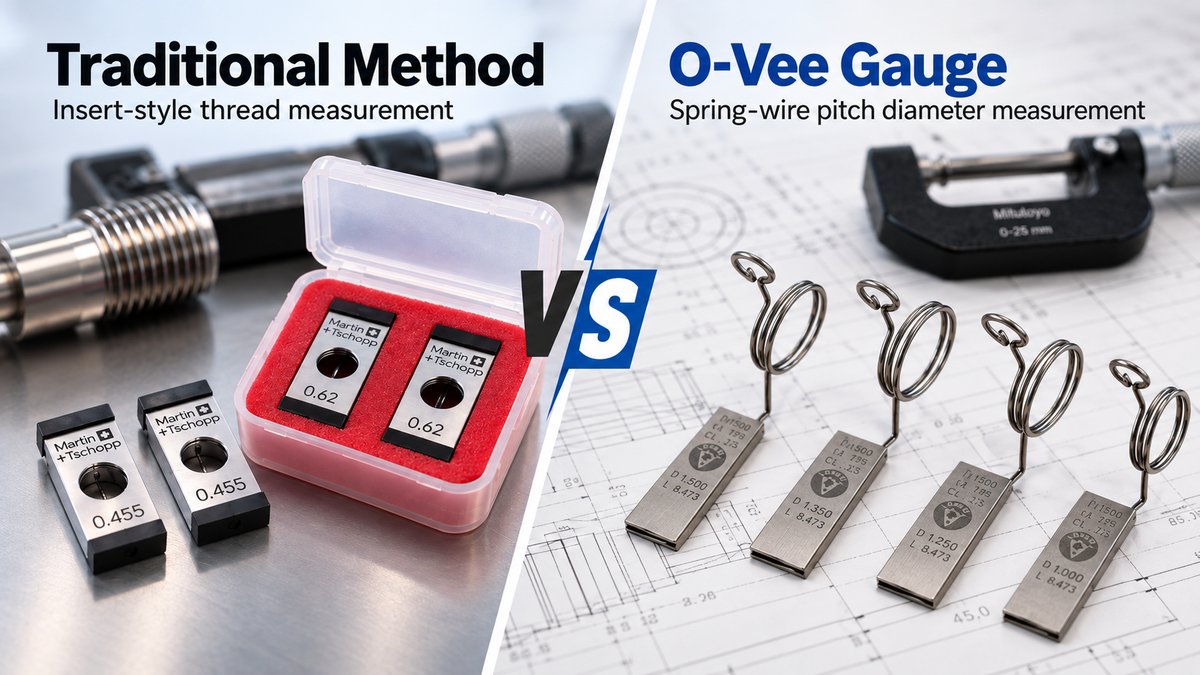

Where numerical control of pitch diameter is required, dimensional methods such as the three-wire technique or O-Vee spring gauges provide significantly more process information. The O-Vee system simplifies the practical measurement process by integrating calibrated measuring elements into a spring structure, allowing pitch diameter to be calculated from a micrometer reading using a gauge-specific calibration constant.

The principal advantage of numerical pitch diameter measurement is its ability to support process monitoring. Rather than identifying a component only after it has exceeded a tolerance limit, manufacturers can observe dimensional trends, monitor tool wear, adjust machining offsets and identify process drift before non-conforming parts are produced.

O-Vee gauges should therefore not be regarded as a universal replacement for conventional thread gauges. A more effective inspection strategy is to combine methods: GO/NO-GO gauges for rapid routine production checks, numerical pitch diameter measurement for first-off and process verification, and detailed dimensional assessment where higher-level quality control or calibration is required.

In practical terms, GO/NO-GO gauging answers “Does the thread pass?”, whereas O-Vee measurement helps answer “Where exactly is the thread within its tolerance?”
